KLi2RE(BO3)2 (RE = Dy, Ho, Er, Tm, Yb, and Y): Structural, Spectroscopic, And Thermogravimetric Studies on a Series of Mixed-Alkali Rare-Earth Orthoborates

Pengyun Chen, M. Mangir Murshed, Michael Fischer, Thomas Frederichs, and Thorsten M. Gesing

Inorg. Chem (2020), 59, 24, 18214–18224

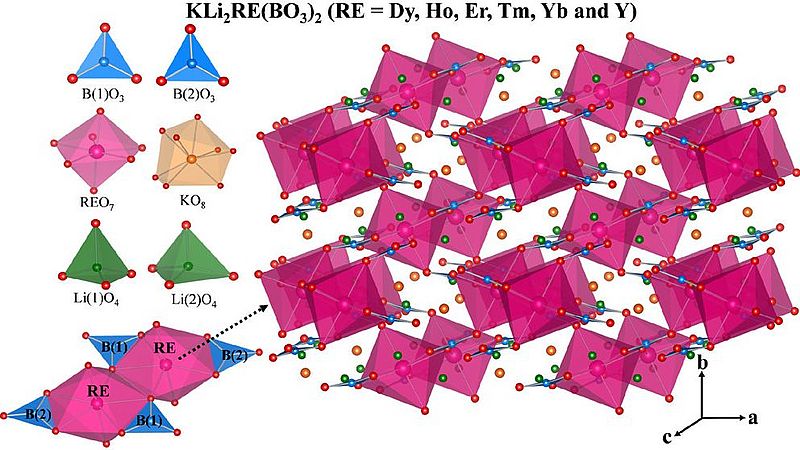

We report a detailed structural, spectroscopic, and thermogravimetric investigation of a new series of mixed-alkali rare-earth orthoborates KLi2RE(BO3)2 (RE = Dy, Ho, Er, Tm, Yb, and Y). Single crystals were directly prepared by a flux method as well as mechanically separated from the polycrystalline powder obtained from the conventional solid-state reactions. All KLi2RE(BO3)2 members are isotypic and crystallize in the space group P21/n. The novel structure type is comprised of [RE2(BO3)4O4]14– anionic clusters where the edge-sharing REO7 pentagonal bipyramids are connected by BO3 groups and both K+ and Li+ cations are located at the interstitial voids of the 3D network. The metric parameters and crystal structural features obtained from the single-crystal data are in excellent agreement with those refined from the powder data. The change of the lattice parameters and unit cell volumes can be explained in terms of the lanthanide contraction effect. A comparison between KLi2RE(BO3)2 and other rare-earth borates with similar chemical compositions indicates that the sum of the ionic radii of the alkali-metal cations governs the symmetry of the crystals. Diffuse reflectance UV–vis spectra display the characteristic absorption behaviors of the RE3+ cations and the fundamental absorption edge. Both the Tauc’s and derivation of absorption spectrum fitting (DASF) methods were used to identify the magnitude and type of bandgap, respectively, which are compared with those obtained from density functional theory (DFT) calculations. The calculated phonon density of states and the vibrational frequency at the gamma point help explain the Fourier transform infrared and Raman spectra of KLi2RE(BO3)2. The incongruent melting behavior and the thermal stability of each member of the KLi2RE(BO3)2 series were also studied by thermogravimetric analyses.
