Research Highlights

Influence of Processing Route on the Surface Reactivity of Cu47Ti33Zr11Ni6Sn2Si1 Metallic Glass

Erika Soares Barreto, Volker Uhlenwinkel, Maximilian Frey, Isabella Gallino, Ralf Busch and Andreas Lüttge

Metals (2021), 11(8), 1173

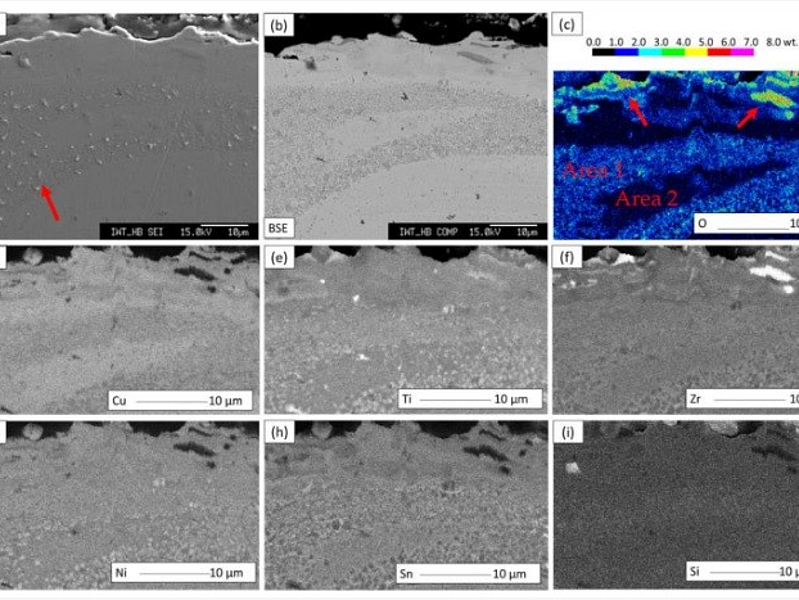

Recently, laser additive manufacturing (AM) techniques have emerged as a promising alternative for the synthesis of bulk metallic glasses (BMGs) with massively increased freedom in part size and geometry, thus extending their economic applicability of this material class. Nevertheless, porosity, compositional inhomogeneity, and crystallization display themselves to be the emerging challenges for this processing route. The impact of these “defects” on the surface reactivity and susceptibility to corrosion was seldom investigated but is critical for the further development of 3D-printed BMGs. This work compares the surface reactivity of cast and additively manufactured (via laser powder bed fusion—LPBF) Cu47Ti33Zr11Ni6Sn2Si1 metallic glass after 21 days of immersion in a corrosive HCl solution. The cast material presents lower oxygen content, homogeneous chemical distribution of the main elements, and the surface remains unaffected after the corrosion experimentation based on vertical scanning interferometry (VSI) investigation. On the contrary, the LPBF material presents a considerably higher reactivity seen through crack propagations on the surface. It exhibits higher oxygen content, heterogeneous chemical distribution, and presence of defects (porosity and cracks) generated during the manufacturing process.

Updated by: MAPEX
