Allgemeine Informationen

• Untersuchungsgebiete

  Electron Microscopy
• Techniken

  Transmission Electron Microscopy

• Hersteller

  Zeiss
• Herstellungsjahr

  1990 (updated 2025)
• Gemessene Größe

  Morphology, crystal structure
• Hauptanwendung

  Transmission electron microscopy, selected area electron diffraction.

Spezifikationen des Geräts

• Technische Aspkete

  Transmission electron microscopy is an established technique for imaging of nanoscale materials using a beam of electrons that is transmitted through the specimen.

  The devide recieved an update funded by MAPEX in 2025, which included complete replacement of the previous control electronics and vacuum control. With the update, the TEM is now able to perform selected area electron diffraction (SAED). SAED provides diffractograms of specimen, which, depending on the focus, can comprise a single nanoparticle or individual grains in a polycrystalline material.

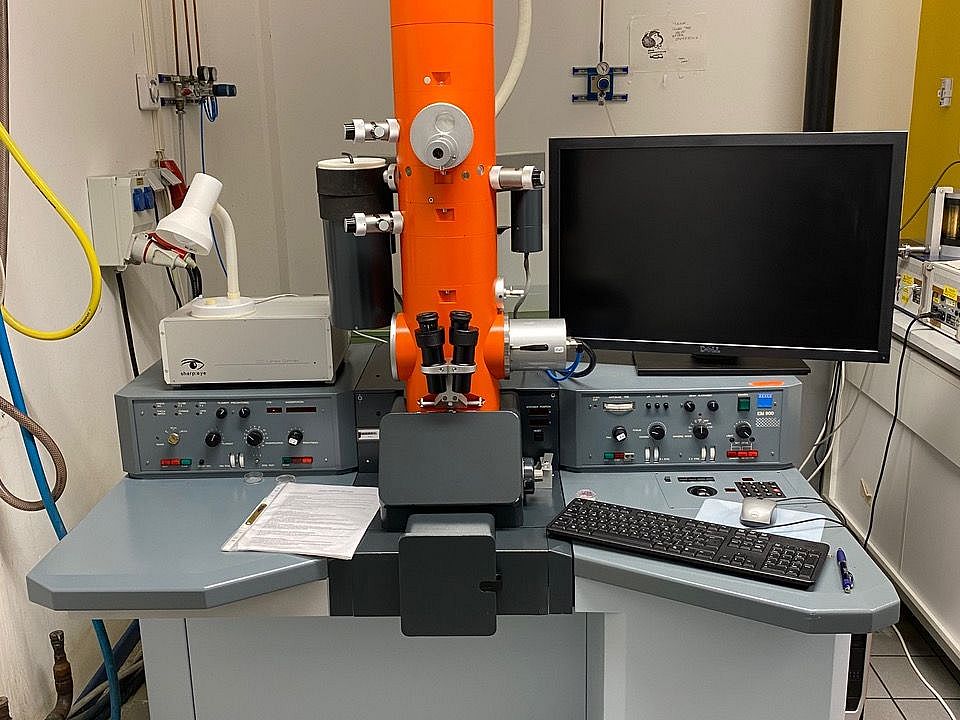

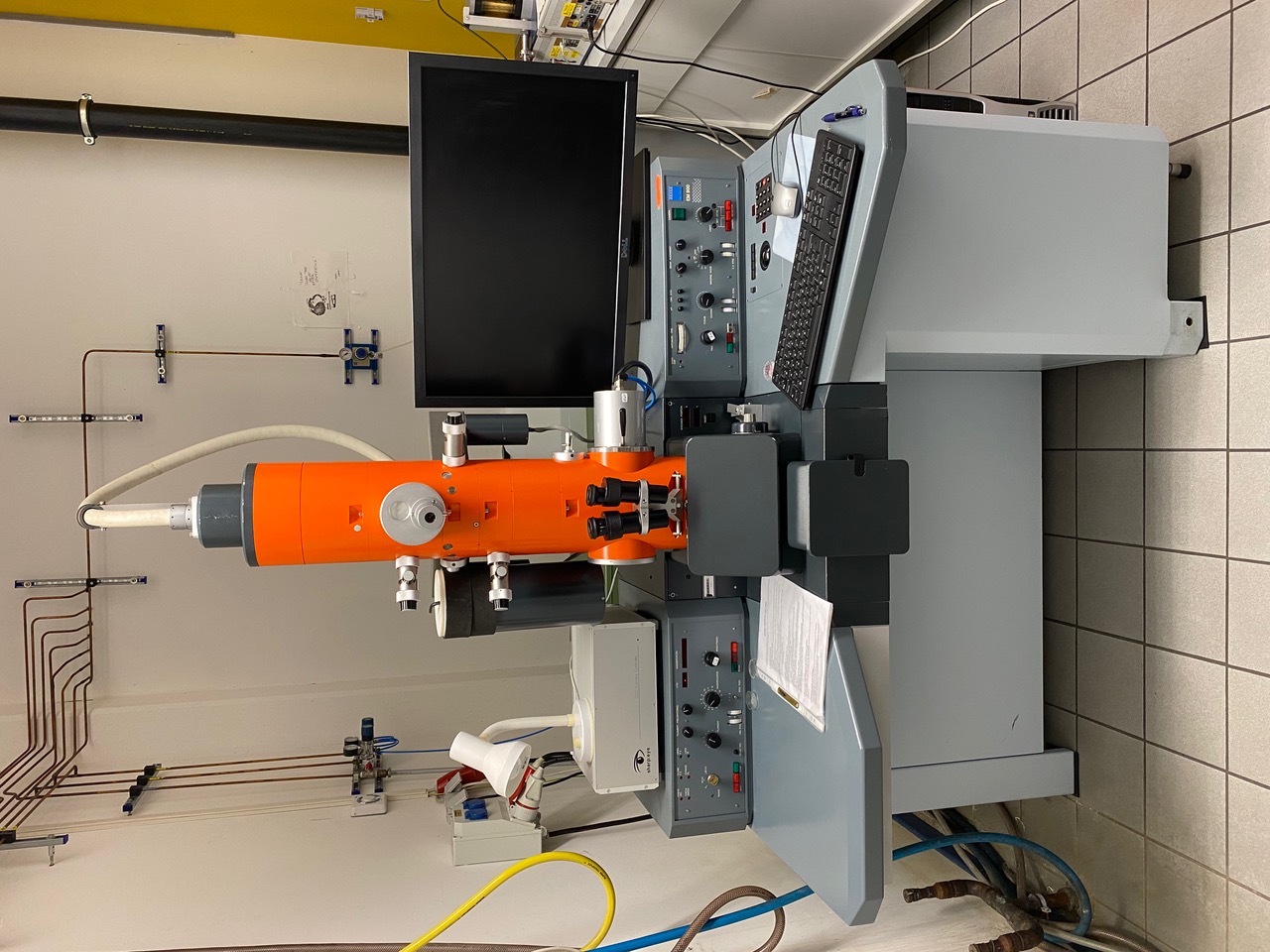

  Key benefits of the EM900 include its ease of operation, allowing even inexperienced researchers to become proficient within two hours, and its rapid sample change, taking under five minutes—or less than one minute for experienced operators. The EM900 provides accelerating voltages of 50 and 80 kV, an energy range leading to a stronger interaction with the sample especially suitable for nanoparticles and low-Z materials. The microscope delivers high-quality images with a resolution of approximately 5 nm. As with most TEMs, samples are deposited on a carbon-coated copper grid, and analysis takes place at high vacuum conditions.

Kontaktperson

• Anwendungswissenschaftler

  Michael Maas
  Fachbereich 4
  Advanced Ceramics IW 3 / 2140
  Telefonnummer 042121864939
  michael.maasprotect me ?!uni-bremenprotect me ?!.de
• Führender Anwendungswissenschaftler

  Kurosch Rezwan


Gerätestandort

• Gruppe

  Advanced Ceramics
• Gebäude

  IW3
• Raum

  2070
• Fachbereich

  Fachbereich 4
