General information

• Investigation area

  Surface Analytics
• Techniques

  Raman spectroscopy coupled with Vertical Scanning Interferometry

• Manufacturer

  Bruker/Renishaw
• Fabrication year

  2016
• Measured quantity

  Surface heights, Raman shift spectra
• Main application

  Analysis of chemical kinetics during dissolution/corrosion, growth, and adsorption of materials
• In-situ, real-time compatible

  Yes
• Correlated workflow available

  Yes
• Facility

  Access to this instrument is possible via the MAPEX Core Facility for Materials Analytics

Instrument specification

• Technical aspects

  The interferometer is equipped for white light scanning and monochromatic phase shift mode;
  Objectives include TTM, 5x Michelson, 20x, 50x, 115x Mirau, 0.55x and 2.0x FOV multiplier tubes;
  The Raman spectroscope is equipped with two lasers of continous wave (532 nm spotlaser and 785 nm line-laser); each laser can be used in normal confocality or in high confocality mode. The laser sports are about 1 micron respectively; a single 50x objective of long working distance (LWD) and a motorized stage with coordinate manager. Furthermore it contains large databases for organics, anorganics, polymers and forensics. Data reduction is usually done with Renishaw's software WiRe.

  Maximum sample size is about 100 mm x 100 mm x 20 mm;
  Data reduction is usually done using SPIP software (Image Metrology)

• In-situ capabilities

  TTM-Michelson-Objectives (TTM=Through Transmissive Media) allow to compensate for a specific refractive index, Temperatures, gaseous enviroments, sample stages, semi-in-situ based on a pattented system by Dr. Rolf S. Arvidson. On Raman: The long working distance of the 50x Objective allows us to focus into a liquid,
• Correlated workflow

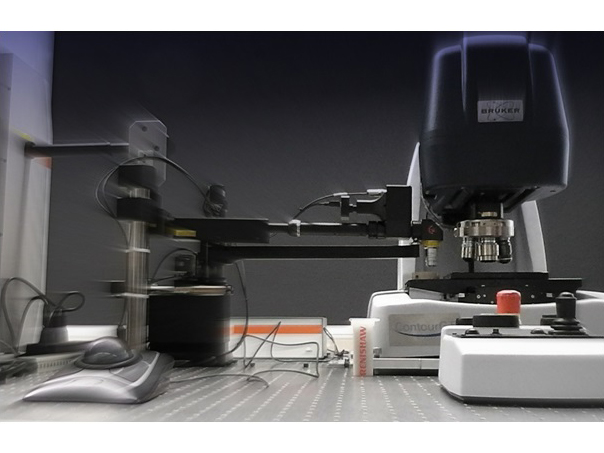

  Correlated Workflow of Bruker's Contour GT-I (VSI) with the Renishaw InVia Raman. (it is possible to correlate the work with an AFM by using fiducials.)
• Additional measurement possibilities

  On VSI: thick film measurements, stitching of FOVs On Raman: several map geometries, depth slice, line map and stitchable FOVs for larger maps

Contact

• Application scientist

  Oliver Plümper
  Fachbereich 5 , Uni Bremen
  GEO
  Phone number 0421 218 65220
  pluemperprotect me ?!uni-bremenprotect me ?!.de
• Principal investigator

  Oliver Plümper


Instrument location

• Group

  Mineralogy
• Building

  GEO
• Room

  3220
• Faculty

  Fachbereich 5
