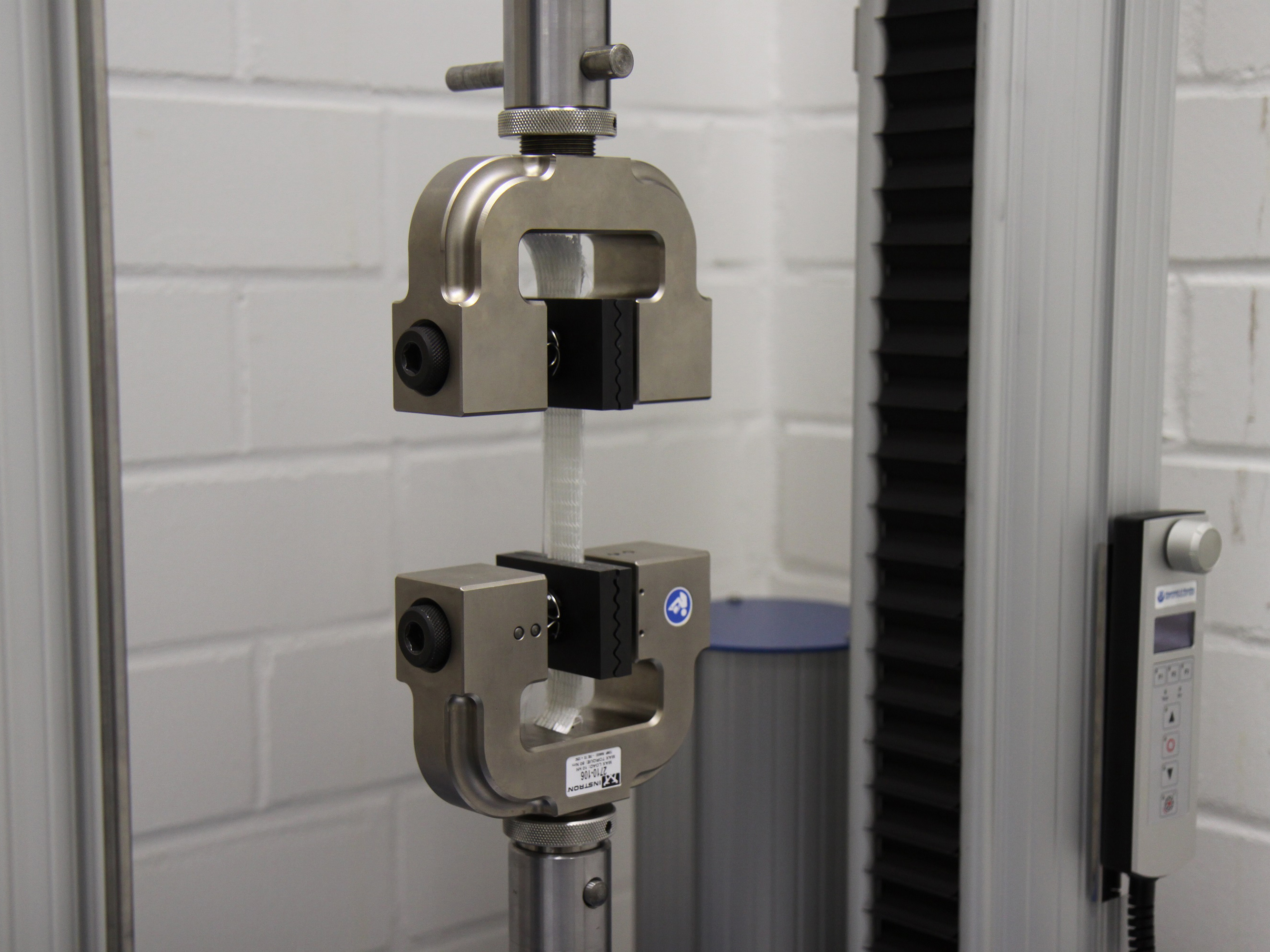

Universal Testing Machine Inspekt Table

Allgemeine Informationen

Untersuchungsgebiete

Other
Techniken

Mechanical testing
Hersteller

Hegewald & Peschke
Herstellungsjahr

2017
Gemessene Größe

tensile, compression, bending, torsion, and strain measurement tests
Hauptanwendung

Universal mechanical testing of materials and components, including tensile, compression, bending and torsion tests with strain measurement under standard climate conditions.

Technische Aspkete

The material testing machine has been designed for universal mechanical tests. For example tensile, pressure and bending tests.
Technical data:
Load cells: 500 N, 5 kN and 100 kN
Velocity: 0.001-400 mm/min
Resolution: <1 µm
Total Crosshead Travel: 1065 mm (without tools)
Total Vertical Test Space: 510
Weitere Untersuchungsmöglichkeiten

Video extensometer (ONE1-M9) for precise strain measurement. Resolution: <1 µm, Field of view: 440 × 230 mm Torsion module for combined tension-torsion tests. Maximum torque: 5 Nm (short-term), 3 Nm (continuous), Axial load capacity: 500 N
