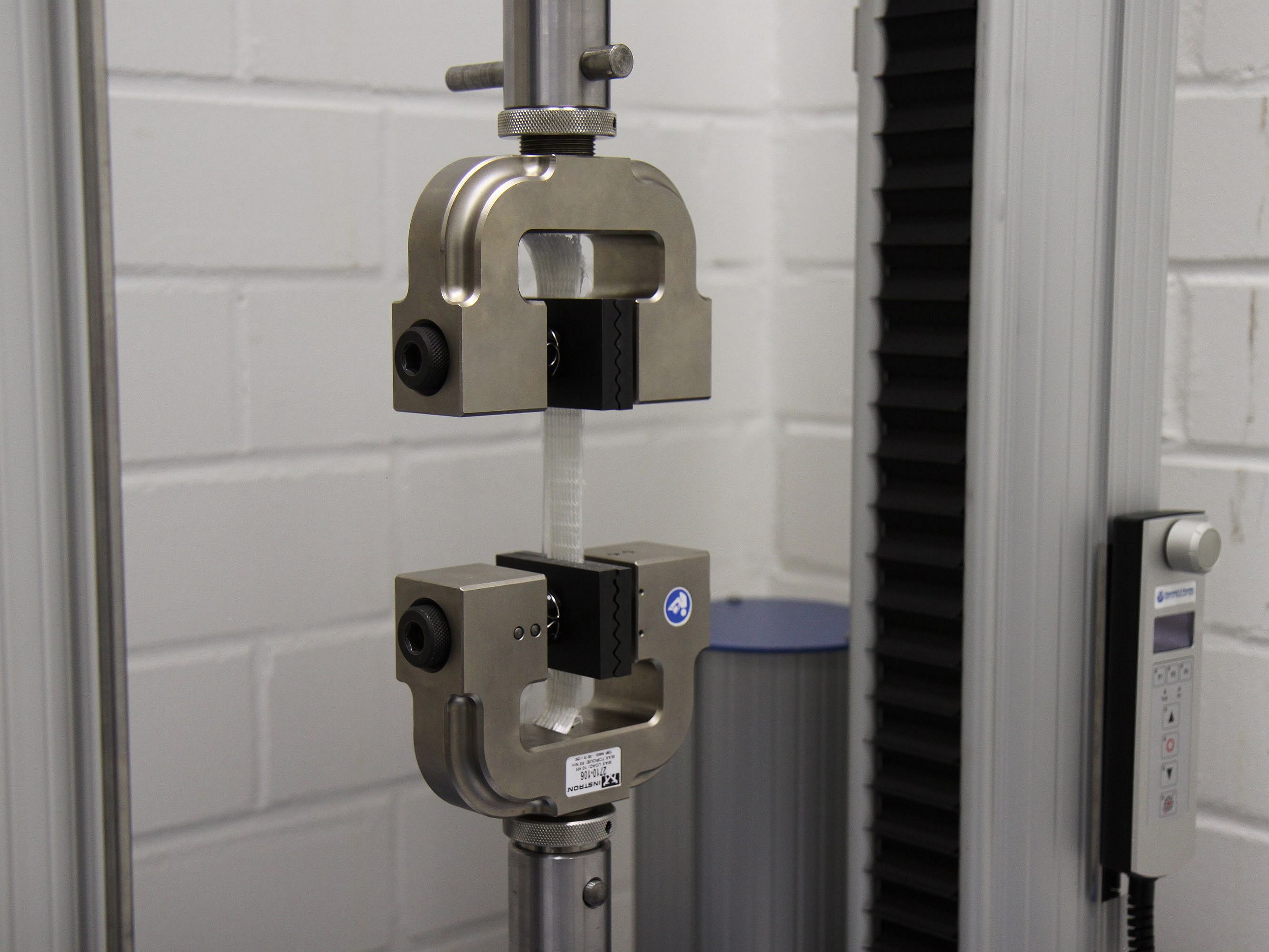

Universal Testing Machine Inspekt Table

General information

Investigation area

Other
Techniques

Mechanical testing
Manufacturer

Hegewald & Peschke
Fabrication year

2017
Measured quantity

tensile, compression, bending, torsion, and strain measurement tests
Main application

Universal mechanical testing of materials and components, including tensile, compression, bending and torsion tests with strain measurement under standard climate conditions.

Technical aspects

The material testing machine has been designed for universal mechanical tests. For example tensile, pressure and bending tests.
Technical data:
Load cells: 500 N, 5 kN and 100 kN
Velocity: 0.001-400 mm/min
Resolution: <1 µm
Total Crosshead Travel: 1065 mm (without tools)
Total Vertical Test Space: 510
Additional measurement possibilities

Video extensometer (ONE1-M9) for precise strain measurement. Resolution: <1 µm, Field of view: 440 × 230 mm Torsion module for combined tension-torsion tests. Maximum torque: 5 Nm (short-term), 3 Nm (continuous), Axial load capacity: 500 N
